Current Electricity Charging Discharging Of Capacitors Question 704

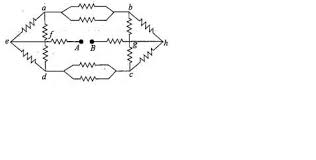

Question: Each of the resistors shown in Fig. has resistance R. Find the equivalent resistance between A and B.
Options:
A) $ \frac{7R}{4} $
B) $ \frac{5R}{4} $
C) $ \frac{9R}{4} $
D) $ \frac{11R}{4} $
Show Answer
Answer:
Correct Answer: D
Solution:
[d] The figure can be redrawn as follows: $ R _{AB}=R+\frac{3R}{4}+R=\frac{11R}{4} $
