Electrostatics Ques 74

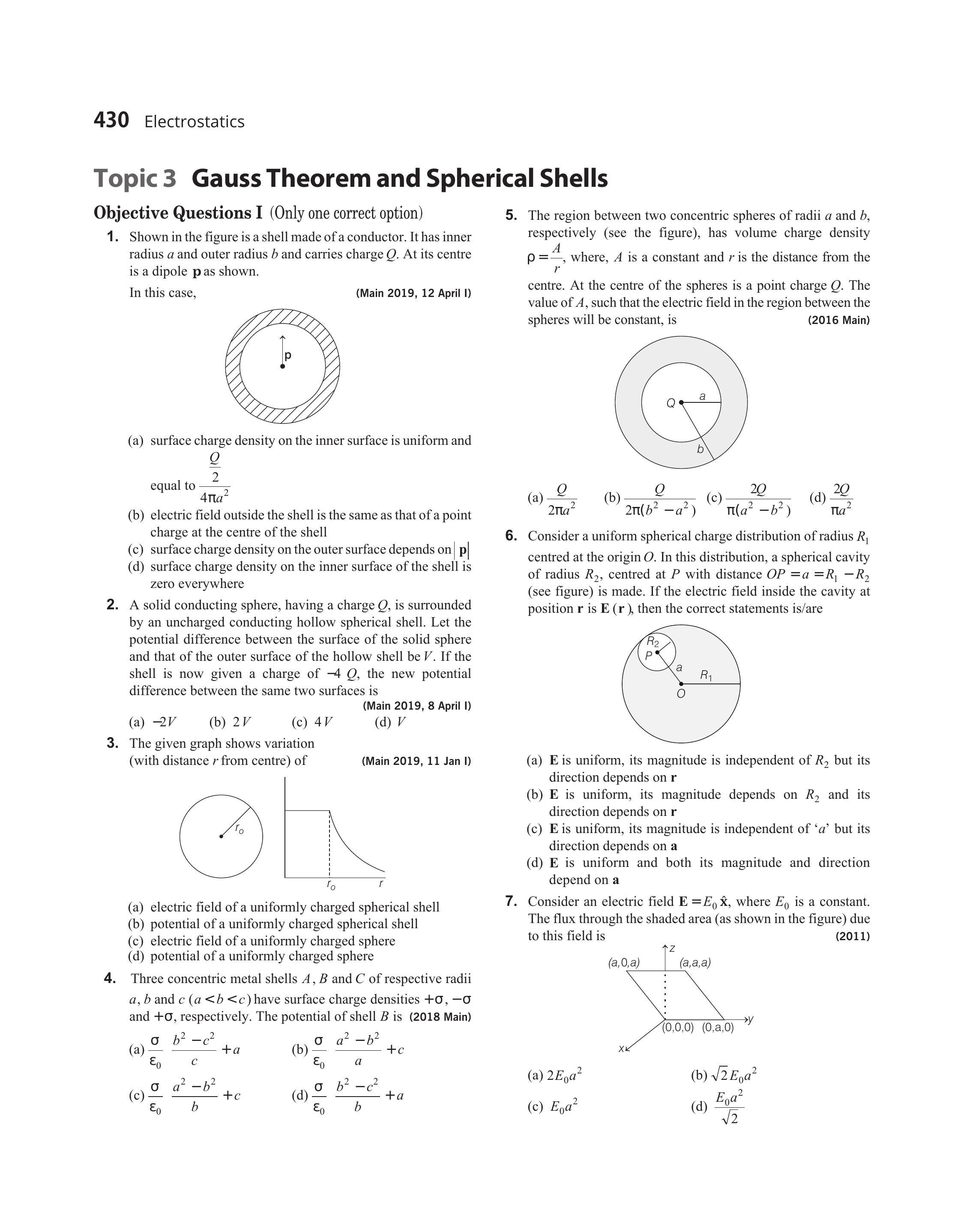

- The given graph shows variation (with distance $r$ from centre) of
(Main 2019, 11 Jan I)
(a) electric field of a uniformly charged spherical shell
(b) potential of a uniformly charged spherical shell
(c) electric field of a uniformly charged sphere
(d) potential of a uniformly charged sphere
Show Answer
Answer:
Correct Answer: 74.(b)
Solution:
- For a uniformly charged spherical shell, electric potential inside it is given by
$ V_{\text {inside }}=V_{\text {surface }}=k q / r_{0}=\text { constant, } $
(where $r_{0}=$ radius of the shell).
and electric potential outside the shell at a distance $r$ is
$ V_{\text {outside }}=\frac{k q}{r} \Rightarrow \quad V \propto 1 / r $
$\therefore$ The given graph represents the variation of $r$ and potential of a uniformly charged spherical shell.
