Heat And Thermodynamics Ques 61
- A cylinder of radius $R$ made of a material of thermal conductivity $K _1$ is surrounded by a cylindrical shell of inner radius $R$ and outer radius $2 R$ made of a material of thermal conductivity $K _2$. The two ends of the combined system are maintained at two different temperatures. There is no loss of heat across the cylindrical surface and the system is in steady state. The effective thermal conductivity of the system is
$(1988,2 M)$
(a) $K _1+K _2$
(b) $K _1 K _2 /\left(K _1+K _2\right)$
(c) $\left(K _1+3 K _2\right) / 4$
(d) $\left(3 K _1+K _2\right) / 4$
Show Answer
Answer:
Correct Answer: 61.(c)
Solution:
Formula:
Series And Parallel Combination Of Rod

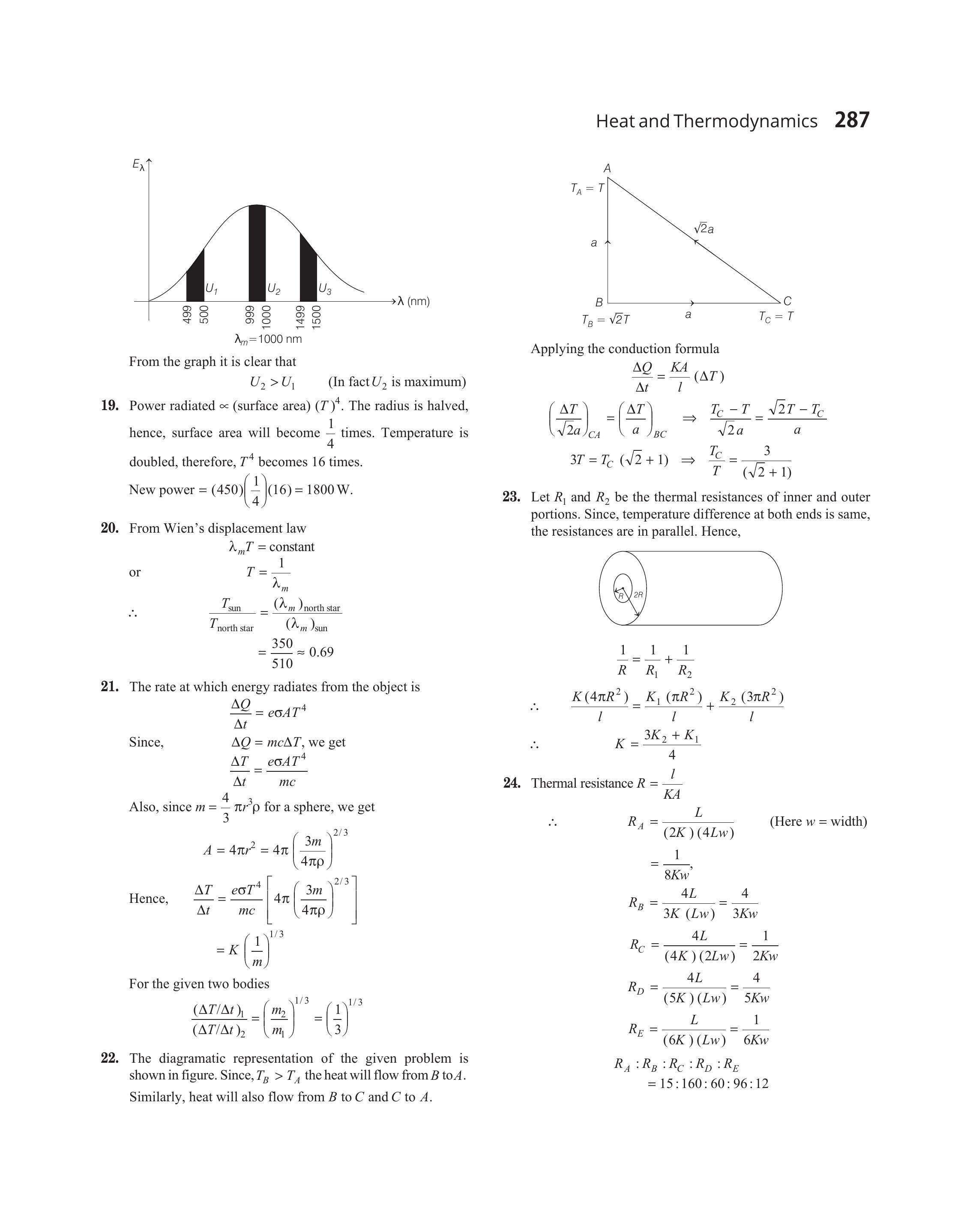

Let $R_1$ and $R_2$ be the thermal resistances of inner and outer portions. Since the temperature difference at both ends is the same, the resistances are in series. Hence,
$$ \begin{aligned} & \frac{1}{R} & =\frac{1}{R _1}+\frac{1}{R _2} \\ & \therefore \quad \frac{K\left(4 \pi R^{2}\right)}{l} & =\frac{K _1\left(\pi R^{2}\right)}{l}+\frac{K _2\left(3 \pi R^{2}\right)}{l} \\ \therefore & K & =\frac{3 K_2+K_1}{4} \end{aligned} $$
