Kinematics Ques 31
- A ball is dropped vertically from a height $d$ above the ground. It hits the ground and bounces up vertically to a height $d / 2$. Neglecting subsequent motion and air resistance, its velocity $v$ varies with height $h$ above the ground as
(2000, 2M)
(a)
(b)
(c)
(d)
Show Answer
Answer:
Correct Answer: 31.(a)
Solution:
Formula:
- (i) For uniformly accelerated / decelerated motion
$$ v^{2}=u^{2} \pm 2 g h $$

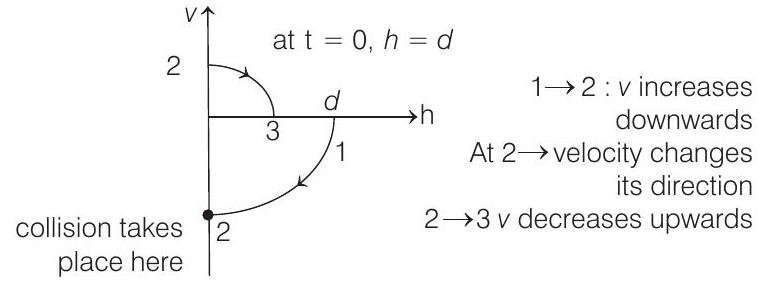

i.e. $v-h$ graph will be a parabola (because equation is quadratic).
(ii) Initially velocity is downwards ( $-ve)$ and then after collision, it reverses its direction with lesser magnitude, i.e. velocity is upwards (+ve). Graph (a) satisfies both these conditions.
NOTE
At time $t=0$ corresponds to the point on the graph where $h=d$.
