Magnetics Ques 76
- A conducting loop carrying a current $I$ is placed in a uniform magnetic field pointing into the plane of the paper as shown. The loop will have a tendency to
$(2003,2 M)$
(a) contract
(b) expand
(c) move towards + ve $x$-axis
(d) move towards -ve $x$-axis
Show Answer
Answer:
Correct Answer: 76.(b)
Solution:
Formula:
Magnetic Force Acting On A Current Carrying Wire:

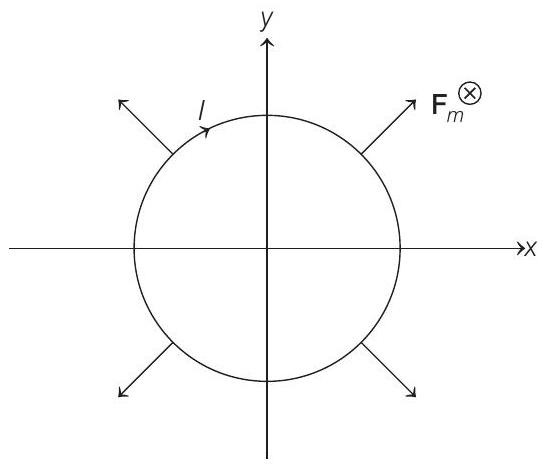

- Net force on a current carrying loop in uniform magnetic field is zero. Hence, the loop cannot translate. So, options (c) and (d) are wrong. From Fleming’s left hand rule we can see that if magnetic field is perpendicular to paper inwards and current in the loop is clockwise (as shown) the magnetic force $\mathbf{F} _m$ on each element of the loop is radially outwards, or the loops will have a tendency to expand.
