Modern Physics Ques 244

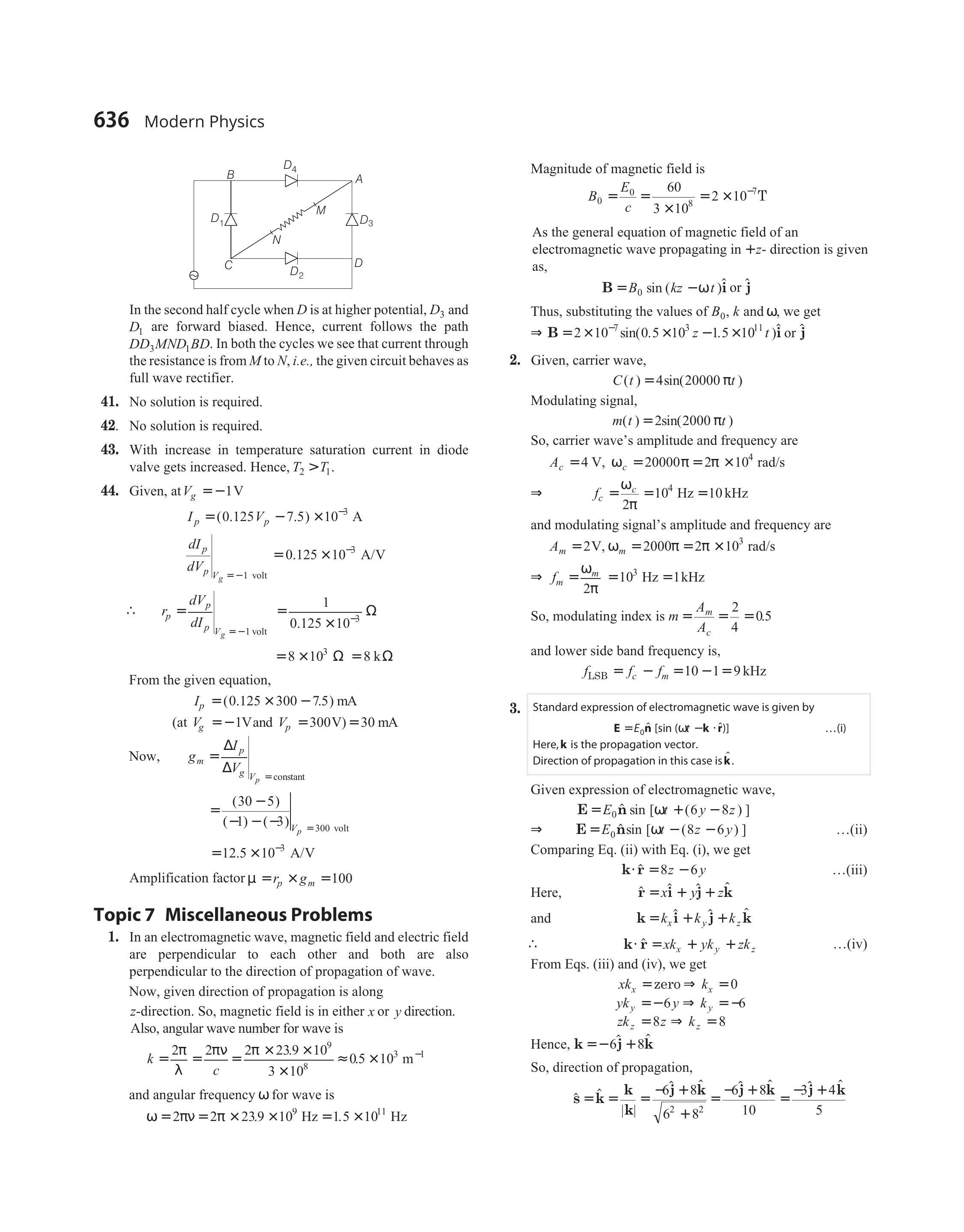

- For the given circuit shown in figure to act as full wave rectifier, the AC input should be connected across ……. the DC out put would appear across ……..
(1991, 1M)
Show Answer
Answer:
Correct Answer: 244.$(B$ and $D$, $A$ and $C)$
Solution:
- In one half cycle when $B$ is at higher potential then, $D _4$ and $D _2$ are forward biased and current follows the path $B D _4 M N D _2 D B$.
In the second half cycle when $D$ is at higher potential, $D _3$ and $D _1$ are forward biased. Hence, current follows the path $D D _3 M N D _1 B D$. In both the cycles we see that current through the resistance is from $M$ to $N$, i.e., the given circuit behaves as full wave rectifier.
