Modern Physics Ques 297

  1. A neutron of kinetic energy $65$ $ eV$ collides inelastically with a singly ionized helium atom at rest. It is scattered at an angle of $90^{\circ}$ with respect of its original direction.

$(1993,9+1 M)$

(a) Find the allowed values of the energy of the neutron and that of the atom after the collision.

(b) If the atom gets de-excited subsequently by emitting radiation, find the frequencies of the emitted radiation.

[Given : Mass of He atom $=4 \times($ mass of neutrons $)$

Ionization energy of $H$ atom $=13.6 $ $eV]$

Show Answer

Answer:

Correct Answer: 297.(a) $ 6.36$ $ eV ,0.312 $ $eV$ (of Neutron),$ 17.84 $ $eV, 16.328 $ $eV$

(b) $1.82 \times 10^{15} Hz, 11.67 \times 10^{15} Hz,9.84 \times 10^{15} Hz$

Solution:

Formula:

Energy In nth Orbit:

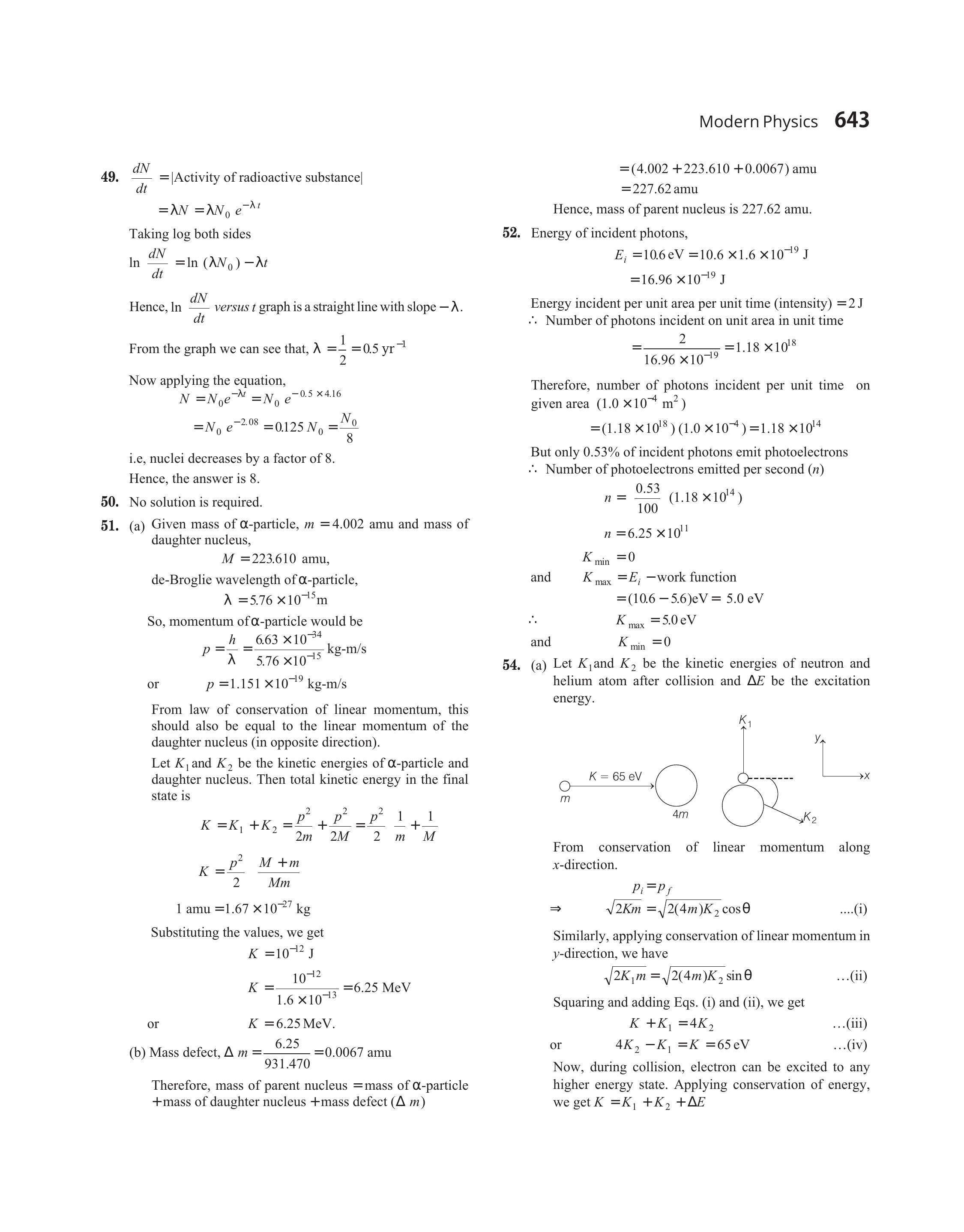

  1. (a) Let $K _1$ and $K _2$ be the kinetic energies of neutron and helium atom after collision and $\Delta E$ be the excitation energy.

From conservation of linear momentum along $x$-direction.

$ \begin{aligned} p _i & =p _f \\ \Rightarrow \quad \sqrt{2 K m} & =\sqrt{2(4 m) K _2} \cos \theta \quad …….(i) \end{aligned} $

Similarly, applying conservation of linear momentum in $y$-direction, we have

$ \sqrt{2 K _1 m}=\sqrt{2(4 m) K _2} \sin \theta \quad …….(ii) $

Squaring and adding Eqs. (i) and (ii), we get

$ \begin{aligned} K+K _1 & =4 K _2 \quad …….(iii) \\ \text { or } \quad 4 K _2-K _1 & =K=65 eV \quad …….(iv) \end{aligned} $

Now, during collision, electron can be excited to any higher energy state. Applying conservation of energy, we get $K=K _1+K _2+\Delta E$

or $\quad 65=K _1+K _2+\Delta E \quad …….(v)$

$\Delta E$ can have the following values,

$ \Delta E _1=\{-13.6-(-54.4)\} eV=40.8 eV $

Substituting in (v), we get

$ K _1+K _2=24.2 eV \quad …….(vi) $

Solving (iv) and (vi), we get

$ \begin{array}{ll} & K _1=6.36 eV \\ \text { and } & K _2=17.84 eV \end{array} $

Similarly, when we put $\Delta E=\Delta E _2$

$ \begin{aligned} & =\{-6.04-(-54.4)\} eV \\ & =48.36 eV \end{aligned} $

Put in Eq. (v), we get

$ K _1+K _2=16.64 eV \quad …….(vii) $

Solving Eqs. (iv) and (vii), we get

$ K _1=0.312 $ $eV \text { and } K _2=16.328$ $ eV $

Similarly, when we put

$ \Delta E=\Delta E _3=\{-3.4-(-54.4)\}=51 $ $eV $

Put in Eq. (v), we get

$ K _1+K _2=14 $ $eV \quad …….(viii) $

Now, solving Eqs. (iv) and (viii), we get

$ K _1=-1.8 eV \text { and } K _2=15.8 $ $eV $

But since the kinetic energy cannot have the negative values, the electron will not jump to third excited state or $n=4$.

Therefore, the allowed values of $K _1$ ( $KE$ of neutron) are $6.36 $ $eV$ and $0.312 $ $eV$ and of $K _2$ (KE of the atom) are $ 17.84 $ $eV$ and $16.328 $ $eV$ and the electron can jump upto second excited state only $(n=3)$.

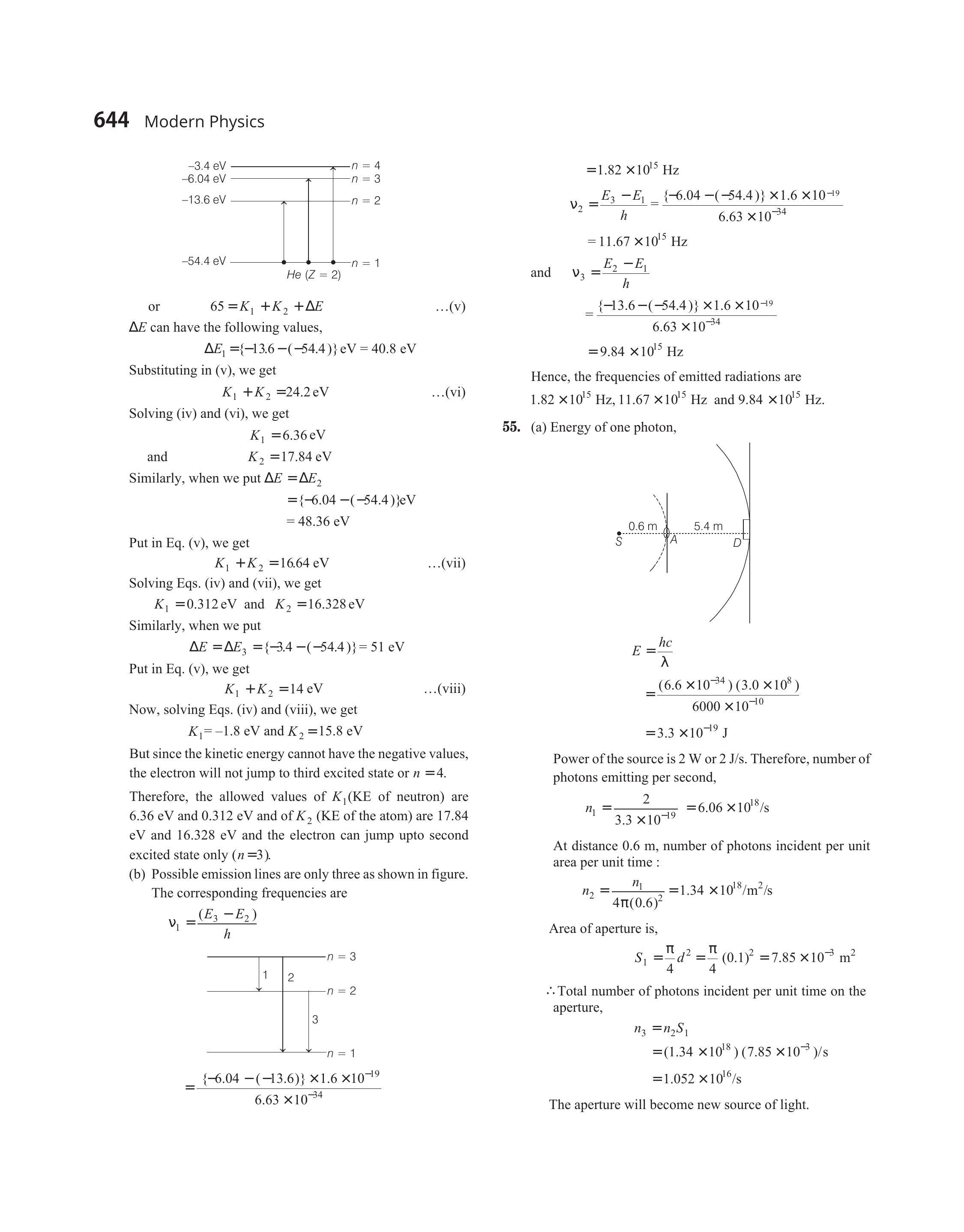

(b) Possible emission lines are only three as shown in figure. The corresponding frequencies are

$ v _1=\frac{\left(E _3-E _2\right)}{h} $

$ \begin{aligned} &=\frac{\{-6.04-(-13.6)\} \times 1.6 \times 10^{-19}}{6.63 \times 10^{-34}}\\ & =1.82 \times 10^{15} Hz \\ v _2 & =\frac{E _3-E _1}{h}=\frac{\{-6.04-(-54.4)\} \times 1.6 \times 10^{-19}}{6.63 \times 10^{-34}} \\ & =11.67 \times 10^{15} Hz \\ \text { and } \quad v _3 & =\frac{E _2-E _1}{h} \\ & =\frac{\{-13.6-(-54.4)\} \times 1.6 \times 10^{-19}}{6.63 \times 10^{-34}} \\ & =9.84 \times 10^{15} Hz \end{aligned} $

Hence, the frequencies of emitted radiations are $1.82 \times 10^{15} $ $Hz, 11.67 \times 10^{15} $ $Hz$ and $9.84 \times 10^{15} $ $Hz$.
