Optics Ques 184
- A light ray travelling in glass medium is incident on glass-air interface at an angle of incidence $\theta$. The reflected $(R)$ and transmitted $(T)$ intensities, both as function of $\theta$, are plotted. The correct sketch is
(2011)

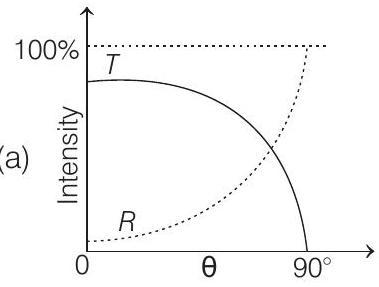

(a)

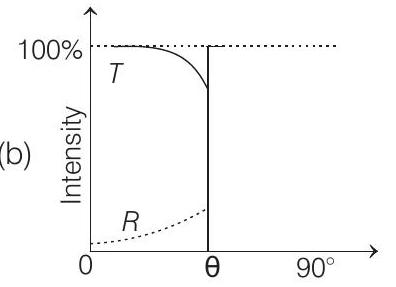

(b)

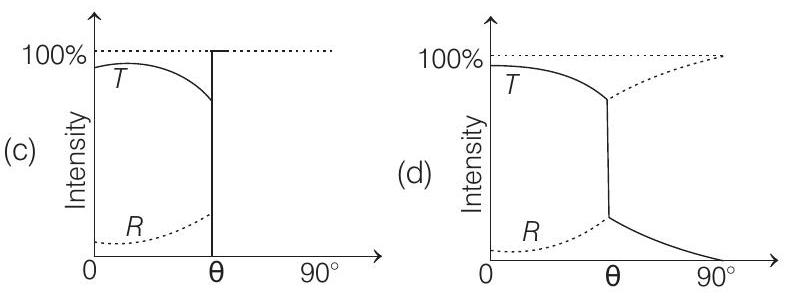

(c)
Show Answer
Answer:
Correct Answer: 184.(c)
Solution:
Formula:
Critical Angle and Total Internal Reflection (T. I. R.)
- After critical angle reflection will be $100 \%$ and transmission is $0 \%$. Options (b) and (c) satisfy this condition.
But option (c) is the correct option. Because in option (b) transmission is given $100 \%$ at $\theta=0^{\circ}$, which is not true.
