Optics Ques 199

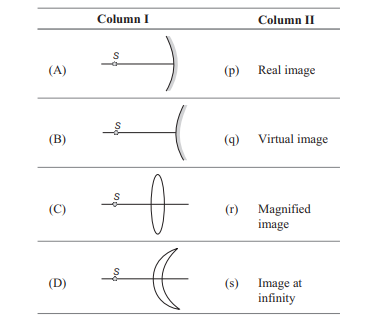

- An optical component and an object $S$ placed along its optic axis are given in Column I. The distance between the object and the component can be varied. The properties of images are given in Column II. Match all the properties of images from Column II with the appropriate components given in Column I.
$(2008,7\ M)$
Show Answer
Answer:
Correct Answer: 199.$(A) \rightarrow p, q, r, s ; \quad(B) \rightarrow q ;(C) \rightarrow p, q, r, s ; \quad(D) \rightarrow p, q, r, s$
Solution:
Formula:
Refraction at Spherical Thin Lens:
(A), (C) and (D) In case of concave mirror or convex lens, image can be real, virtual, diminished, magnified or of same size.
(B) In case of convex mirror image is always virtual (for real object).
