Optics Ques 215

  1. The eye can be regarded as a single refracting surface. The radius of curvature of this surface is equal to that of cornea $(7.8 $ $mm)$. This surface separates two media of refractive indices $1$ and $1.34$. Calculate the distance from the refracting surface at which a parallel beam of light will come to focus.

(2019 Main, 10 Jan II)

(a) $4.0 $ $cm$

(b) $2 $ $cm$

(c) $3.1 $ $cm$

(d) $1 $ $cm$

Show Answer

Answer:

Correct Answer: 215.(c)

Solution:

Formula:

Refraction at Spherical Surfaces:

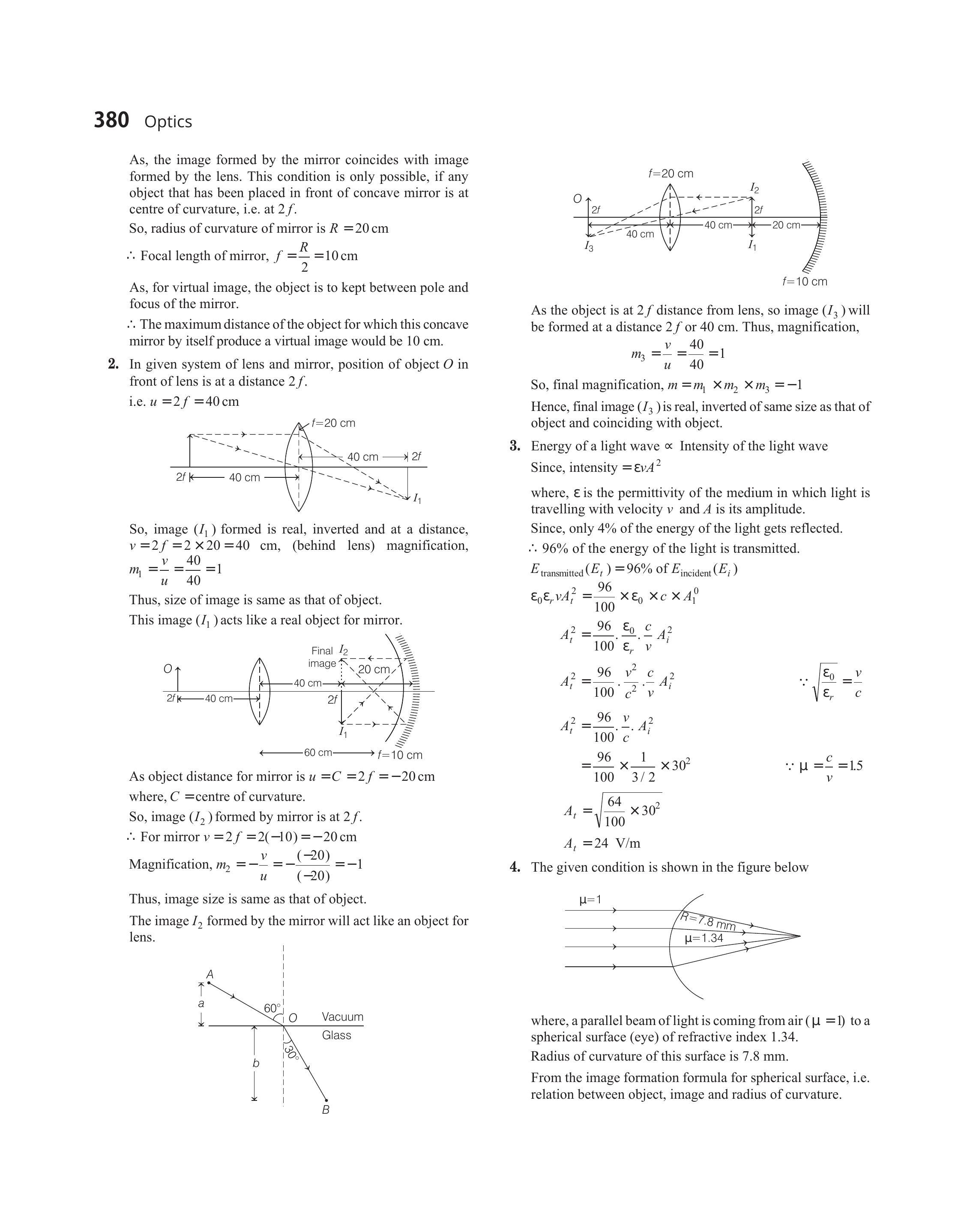

  1. The given condition is shown in the figure below

where, a parallel beam of light is coming from air $(\mu=1)$ to a spherical surface (eye) of refractive index $1.34$.

Radius of curvature of this surface is $7.8$ $ mm$.

From the image formation formula for spherical surface, i.e. relation between object, image and radius of curvature.

$ \frac{\mu _r}{v}-\frac{\mu _i}{u}=\frac{\mu _r-\mu _i}{R} $

Given, $\mu _r=1.34, \mu _i=1, u=\infty(-ve)$ and

$ R=7.8 $

Substituting the given values, we get

$\frac{1.34}{v}+\frac{1}{\infty} =\frac{1.34-1}{7.8} $

$\text { or } \frac{1.34}{v} =\frac{0.34}{7.8} $

$\Rightarrow v =\frac{1.34 \times 7.8}{0.34}$ $ mm $

$\Rightarrow v =\frac{4}{3} \times 3 \times 7.8 $ $mm$

$(\because$ approximately $1.34=4 / 3$ and $0.34=1 / 3)$

$\Rightarrow$ $ v=31.2$ $ mm \text { or } 3.12$ $ cm $
