Optics Ques 27

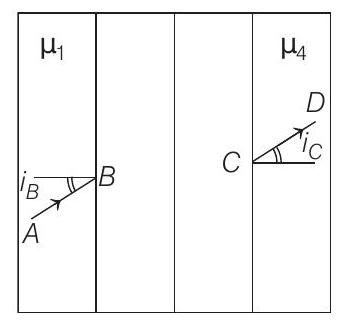

- A ray of light passes through four transparent media with refractive indices $\mu _1, \mu _2, \mu _3$ and $\mu _4$ as shown in the figure. The surfaces of all media are parallel. If the emergent ray $C D$ is parallel to the incident ray $A B$, we must have
(2001, 2M)
(a) $\mu _1=\mu _2$
(b) $\mu _2=\mu _3$
(c) $\mu _3=\mu _4$
(d) $\mu _4=\mu _1$
Show Answer
Answer:
Correct Answer: 27.(d)
Solution:
Formula:
Laws of Refraction (at any Refracting Surface):
- Applying Snell’s law at $B$ and $C$,
$\mu \sin i=$ constant or
$ \mu _1 \sin i _B=\mu _4 \sin i _C $
But $\quad A B | C D$
$ \therefore \quad i _B=i _C $
or
$ \mu _1=\mu _4 $

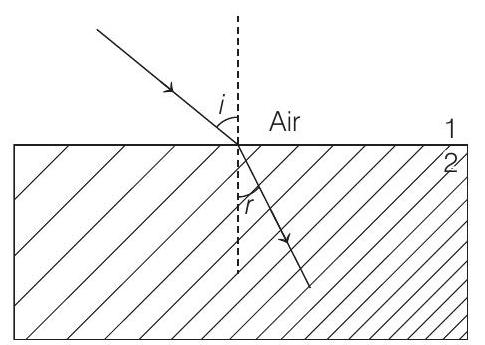

NOTE: The Snell’s law, which the students read in their plus two syllabus $\mu=\frac{\sin i}{\sin r}$ is derived from $\mu \sin i=$ constant or $\mu _1 \sin i _1=\mu _2 \sin i _2$
Here : $\mu _1=1, \mu _2=\mu$, or $\sin i=\mu \sin r$ or $\mu=\frac{\sin i}{\sin r}$
