Work Power And Energy Ques 14
- A uniform chain of length $L$ and mass $M$ is lying on a smooth table and one-third of its length is hanging vertically down over the edge of the table. If $g$ is acceleration due to gravity, the work required to pull the hanging part on to the table is
(1985, 2M)
(a) $M g L$
(b) $M g L / 3$
(c) $M g L / 9$
(d) $M g L / 18$
Show Answer
Answer:
Correct Answer: 14.(d)
Solution:
Formula:

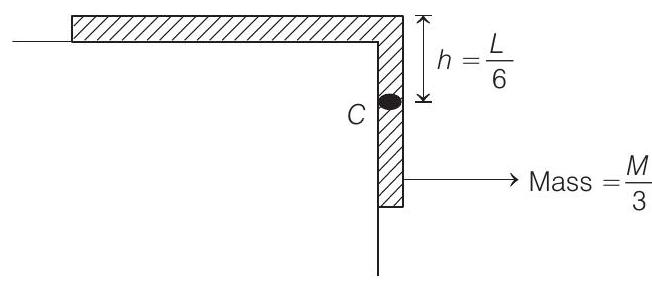

- Mass of hanging portion is $M / 3$ (one-third) and centre of mass $c$, is at a distance $h=\frac{L}{6}$ below the table top. Therefore, the required work done is,
$$ W=m g h=\frac{M}{3} \quad(g) \frac{L}{6}=\frac{M g L}{18} $$
