Mechanical Properties Of Fluids Ques 13

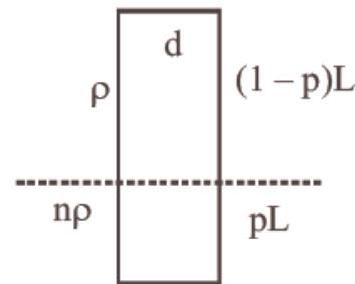

13. Two non-mixing liquids of densities $\rho$ and $n \rho$ $(n>1)$ are put in a container. The height of each liquid is $h.$ A solid cylinder of length $L$ and density $d$ is put in this container. The cylinder floats with its axis vertical and length $pL(p<1)$ in the denser liquid. The density $d$ is equal to :
(a) $\{1+(n+1) p\} \rho$
(b) $\{2+(n+1) p\} \rho$
(c) $\{2+(n-1) p\} \rho$
(d) $\{1+(n-1) p\} \rho$
Show Answer
Answer:
Correct Answer: 13.(d)
Solution:
- (d) As we know, Pressure $P=Vdg$
Here, $L A d g=(p L) A(n \rho) g+(1-p) L A \rho g$
$\Rightarrow d=(1-p) \rho+pn \rho=[1+(n-1) p] \rho$
When a body of volume $V$ floats in a liquid then
Weight of the body $=$ up thrust
$\Rightarrow V \rho g=Vin \sigma g$
Here, $V=$ volume of body
$\rho=$ density of body
$\sigma=$ density of liquid
$V _{\text{in }}=$ volume of the body immersed in liquid
