Current Electricity Ques 115
- A $2$ $ W$ carbon resistor is color coded with green, black, red and brown respectively. The maximum current which can be passed through this resistor is
(2019 Main, 10 Jan I)
(a) $0.4 $ $mA$
(b) $63 $ $mA$
(c) $20 $ $mA$
(d) $100 $ $mA$
Show Answer
Answer:
Correct Answer: 115.(c)
Solution:
Formula:

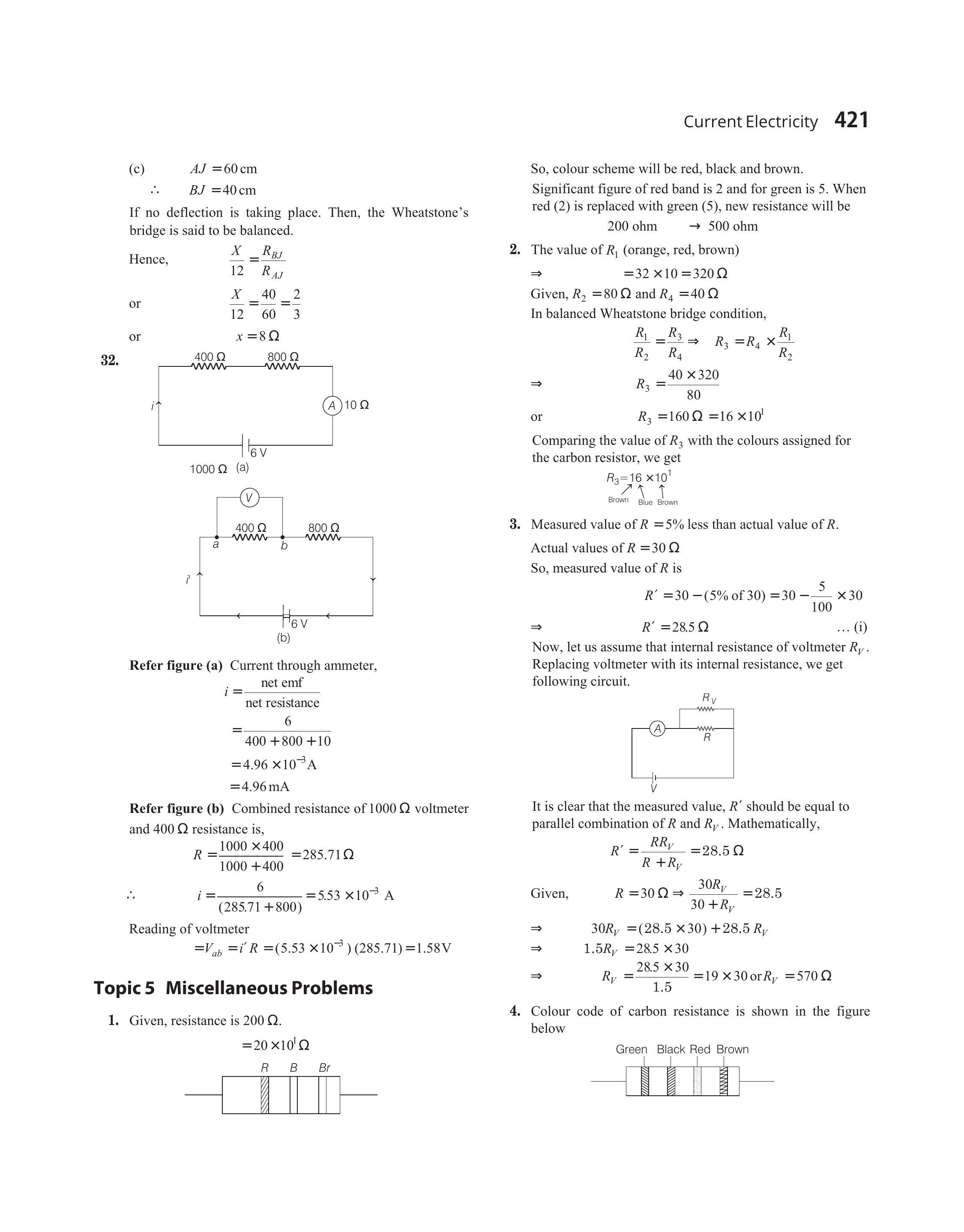

- Colour code of carbon resistance is shown in the figure below
So, resistance value of resistor using colour code is
$ R=502 \times 10=50.2 \times 10^{2} \Omega $
Here, we must know that for given carbon resistor first three colours give value of resistance and fourth colour gives multiplier value.
Now using power, $P=i^{2} R$
$ \text { we get, } \quad \begin{aligned} i & =\sqrt{\frac{P}{R}}=\sqrt{\frac{2}{50.2 \times 10^{2}}} \\ & \simeq 20 \times 10^{-3} A=20 mA . \end{aligned} $
