Current Electricity Ques 26
- A uniform metallic wire has a resistance of $18 $ $ \Omega$ and is bent into an equilateral triangle. Then, the resistance between any two vertices of the triangle is
(2019 Main, 10 Jan I)
(a) $12$ $\Omega$
(b) $8$ $ \Omega$
(c) $2 $ $\Omega$
(d) $4 $ $\Omega$
Show Answer
Answer:
Correct Answer: 26.(d )
Solution:
Formula:
- Resistance of each arm of equilateral triangle will be
$ R=\frac{18}{3}=6 \Omega $

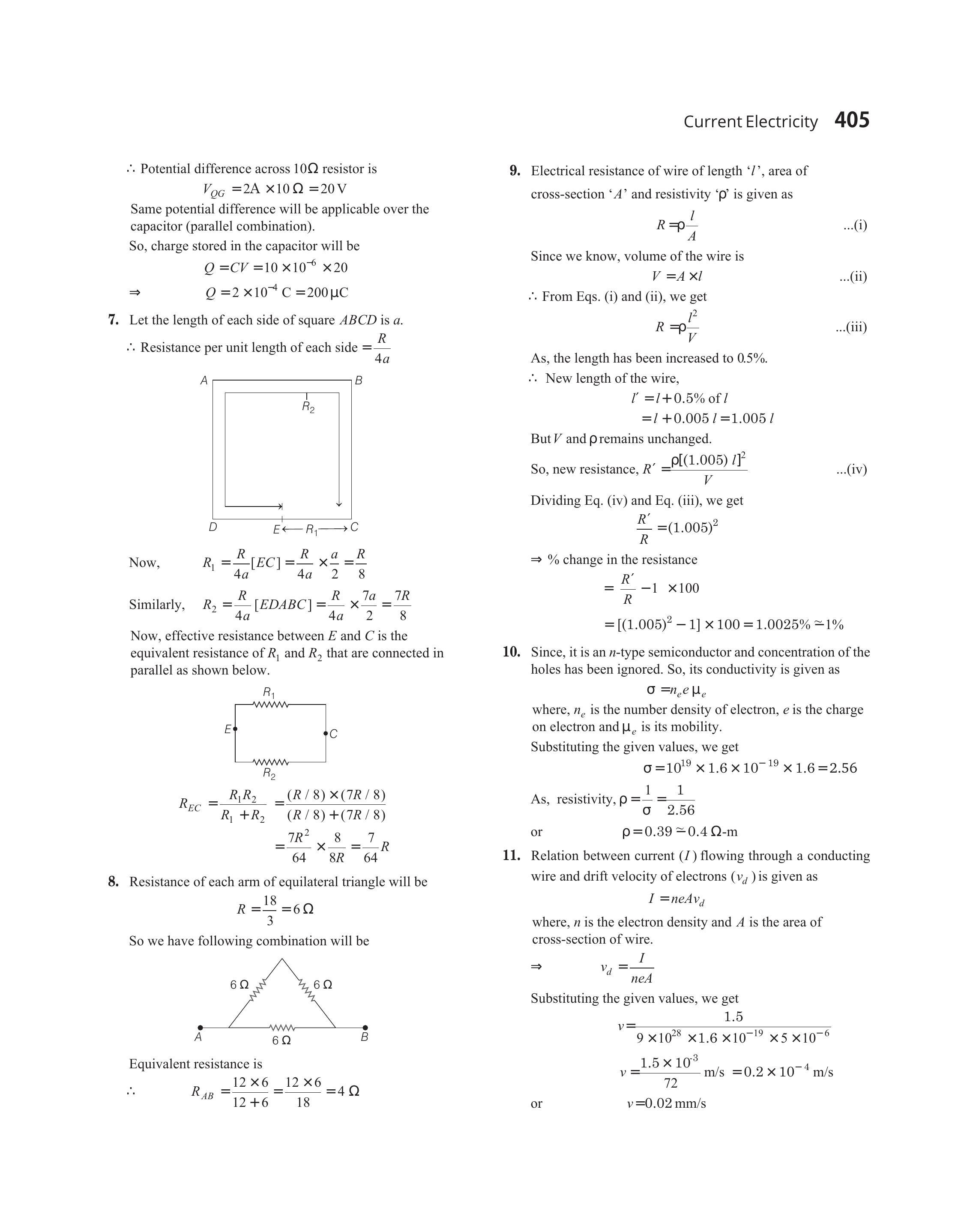

So we have following combination will be
Equivalent resistance is
$ \therefore \quad R _{A B}=\frac{12 \times 6}{12+6}=\frac{12 \times 6}{18}=4 \Omega $
