Current Electricity Ques 3
- Space between two concentric conducting spheres of radii $a$ and $b(b>a)$ is filled with a medium of resistivity $\rho$. The resistance between the two spheres will be
(a) $\frac{\rho}{2 \pi} (\frac{1}{a}+\frac{1}{b})$
(b) $\frac{\rho}{4 \pi} (\frac{1}{a}-\frac{1}{b})$
(c) $\frac{\rho}{2 \pi} (\frac{1}{a}-\frac{1}{b})$
(d) $\frac{\rho}{4 \pi} (\frac{1}{a}+\frac{1}{b})$
(2019 Main, 10 April II)
Show Answer
Answer:
Correct Answer: 3.(b)
Solution:
Formula:
- Key Idea: Resistance between surface of inner shell and a circumferential point of outer shell can be formed by finding resistance of a thin (differentially thin) shell in between these two shells. Then, this result can be integrated (summed up) to get resistance of the complete arrangement.

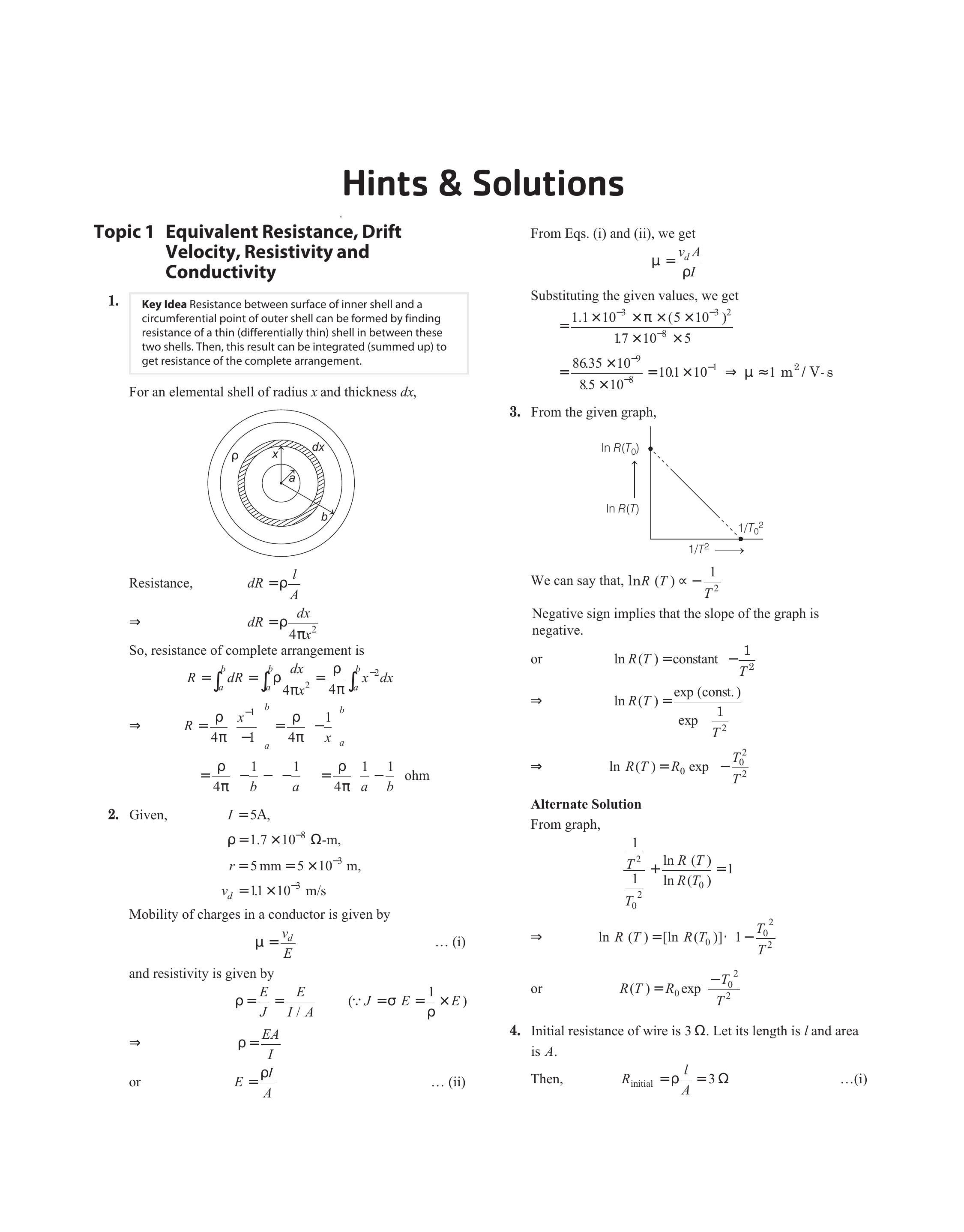

For an elemental shell of radius $x$ and thickness $d x$,
Resistance, $\quad d R=\rho \frac{l}{A}$
$ \Rightarrow \quad d R=\rho \frac{d x}{4 \pi x^{2}} $
So, resistance of complete arrangement is
$ \begin{aligned} R & =\int _a^{b} d R=\int _a^{b} \rho \frac{d x}{4 \pi x^{2}}=\frac{\rho}{4 \pi} \int _a^{b} x^{-2} d x \\ \Rightarrow \quad R & =\frac{\rho}{4 \pi} (\frac{x^{-1}}{-1})^b _a=\frac{\rho}{4 \pi}(-\frac{1}{x}) _a^{b} \\ & =\frac{\rho}{4 \pi}(-\frac{1}{b}-(-\frac{1}{a}))=\frac{\rho}{4 \pi} (\frac{1}{a}-\frac{1}{b}) \text { ohm } \end{aligned} $
