Laws Of Motion Ques 13

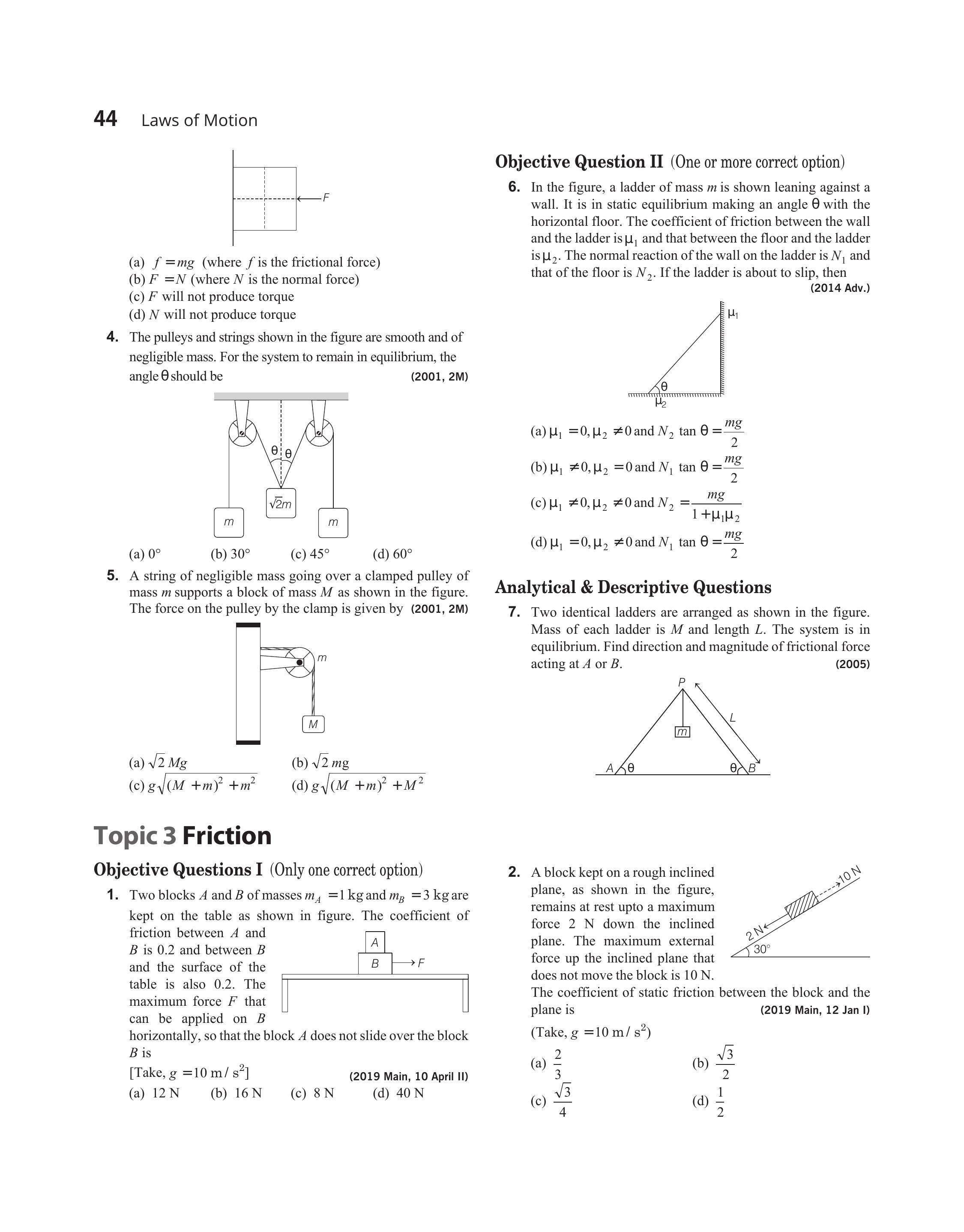

- A block of mass $m$ is at rest under the action of force $F$ against a wall as shown in figure. Which of the following statement is incorrect?
$(2005,2 \mathrm{M})$
(a) $f=m g$ (where $f$ is the frictional force)
(b) $F=N$ (where $N$ is the normal force)
(c) $F$ will not produce torque
(d) $N$ will not produce torque
Show Answer
Answer:
Correct Answer: 13.(d)
Solution:
Formula:
- This is the equilibrium of coplanar forces. Hence,
$$ \begin{array}{rlrl} & & \Sigma F_{x} & =0 \\ \therefore & F & =N \\ & \therefore & \Sigma F_{y} & =0, f=m g \\ & \Sigma & \Sigma \tau_{c} & =0 \\ & \text { Since, } & \tau_{N}+\tau_{f} & =0 \\ & \therefore & \tau_{f} & \neq 0 \\ & & \tau_{N} & \neq 0 \end{array} $$
