Carboxylic Acids and their Derivatives - Result Question 37

Passage

$P$ and $Q$ are isomers of dicarboxylic acid $\mathrm{C}_4 \mathrm{H}_4 \mathrm{O}_4$. Both decolourize $\mathrm{Br}_2 / \mathrm{H}_2 \mathrm{O}$. On heating, $P$ forms the cyclic anhydride. Upon treatment with dilute alkaline $\mathrm{KMnO}_4 \cdot P$ as well as $Q$ could produce one or more than one form $S, T$ and $U$.

(2013 Adv.)

<img src=“https://temp-public-img-folder.s3.amazonaws.com/sathee.prutor.images/sathee_image/snip_images_VW3e3RDO4VaqjVkexUyRdwBlkOu9PJWMX0pX2LuLR-o_original_fullsize_png.jpg"width="400"/>

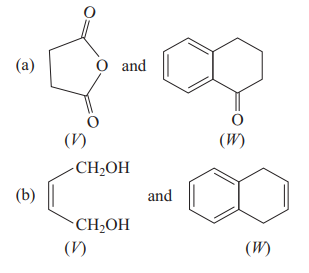

24. In the following reaction sequences $V$ and $W$ are respectively

$ Q \xrightarrow[\Delta]{H _2 / Ni} V $

<img src=“https://temp-public-img-folder.s3.amazonaws.com/sathee.prutor.images/sathee_image/cropped_2024_01_16_b4fdca9f34924034e8d8g-387_jpg_height_106_width_688_top_left_y_2071_top_left_x_296.jpg"width="400"/>

alt text

<img src=“https://temp-public-img-folder.s3.amazonaws.com/sathee.prutor.images/sathee_image/snip_images_P-WOwNqjHHpLUrR-SAqGfiXDyZch-n30c6o-pu-cmeg_original_fullsize_png.jpg"width="430"/>

Show Answer

Answer:

Correct Answer: 24. (a)

Solution:

PLAN: $Ni/H_2$ reduces $(C = C)$ bond.

Benzene undergoes Friedel - Crafts reaction $Zn-Hg/HCl$ reduces carbonyl group (Clemmmensen reduction)

<img src=“https://imagedelivery.net/YfdZ0yYuJi8R0IouXWrMsA/2e5141fc-dea7-4f62-0f3c-254d33570100/public"width="440">
